Heater for piping [Pipes Heater]
- In stock
- Semi Order
- Order
- Heat resistant 200°C
- RoHS2 Compliance

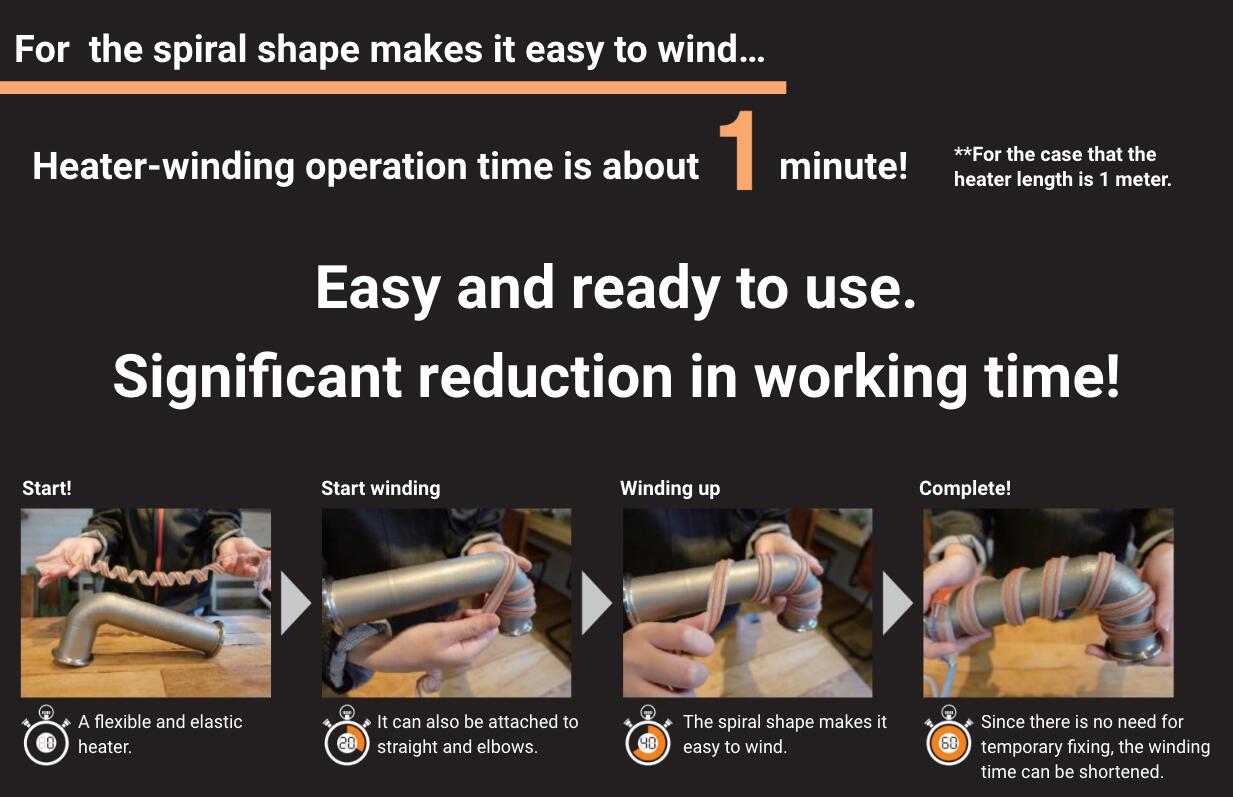

[SPIRAL REVOLUTION ~Heater winding operation time is about 1 minute!]
** For the case that the heater length is 1 meter.
[Explanation]
This is [Pipes-heater] for all-in-one package that includes a heater, temperature controller, and temperature sensor.
That's why easy to use for first time users.
- It is spiral and easy to roll!
=Significant reduction in working time - No need for troublesome wiring
=It is easy! Ready to use! - Safe! With temperature controller
=Keep the heater at a constant temperature
[Applications]
- Anti-freezing, prevention of temperature drop, prevention of condensation
[Contents]
- Silicon spiral heater (100V outlet plug installed)

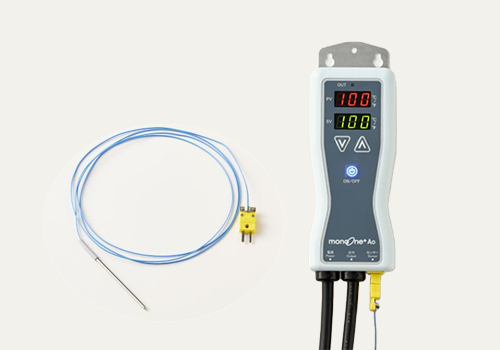

- Digital Temperature Controller "monoOne+Ao"and Temperature Sensor
[To fix it more firmly]
Silicon self-adhesive tape (model: SIT-1500) is recommended.
It is recommended for wrapping and fixing temperature sensors and heaters, and for insulating and protecting cables.
**The heaters other than 100V are made-to-order and will take some time to be manufactured.
For more details
Overview
【SPIRAL REVOLUTION】
This is [Hot-pipes] for all-in-one package that includes a heater, temperature controller, and temperature sensor.
That's why easy to use for first time users.
Features
- It is spiral and easy to roll! Significant reduction in working time.
- No need for troublesome wiring. The heater of 100V outlet plug is already installed.
- The temperature controller can keep the heater at a constant temperature, you can use safty.
- You can choose from 3 types of heater length! Custom-made to your desired length is also available.
CAUTION
- This product is developed and manufactured for general industrial applications.
- Do not use the product above the rated voltage (V).
- Be sure to attach to a grounding before using.
- This product is not waterproof. Avoid using the product in an environment where water, oil, solvent, etc. is splashed, as it may cause damage or electric leakage.
- This product does not have an explosion-proof structure. Therefore, it cannot be used in an explosion-proof zone.
- Do not touch the heater while the power is on. There is a risk of burns.
- Do not use the product in an atmosphere containing flammable gas, combustible gas, or corrosive gas.
- Do not disassemble or modify this product.
- Do not pull on the power cable.
- Silicone-based products may emit smoke or odor when heated to high temperatures. This is a phenomenon peculiar to silicon called "impurities" or "siloxane gas" in the silicon.
We also accept heat treatment (baking treatment), so please let us know if you wish. (*Separate charges and additional delivery time will be incurred for heat treatment.)
**Heat treatment (baking treatment): heat treatment at a high temperature is applied for a certain period of time to release a certain amount of smoke inside the product. This will eliminate smoke, but it does not guarantee that 100% siloxane gas will disappear. Please understand this beforehand. - Contents are subject to change without notice.
Heater Specifications | Temperature controller・temperature sensor Specifications |
---|---|
[Silicone spiral heater] | [Digital temperature controller 「monoOne+Ao」・Temperature sensor] |
|
|
This heater is processed into a spiral shape (φ20). It is flexible and can be wound easily. Heat-resistant:200℃ For more information |
Handy type that is easy to use in every place. Equipped with overtheat prevention function and sensor abnormality detection function. Temperature sensor (thermocouple K sheath type) included. For more information |
List of Model Specifications
Stocks | Model | Heater length | Voltage | Electric power | Temperature controller | Temperature sensor |
---|---|---|---|---|---|---|
● | SPX-1-Ao | 1m | 100V | 50W | monoone+Ao | TH-4154-2C |
SPX-3-Ao | 3m | 150W | ||||
SPX-5-Ao | 5m | 250W |
*The heater with 1m lead wires.
*It is possible to manufacture other than the above specifications. Please feel free to contact us.

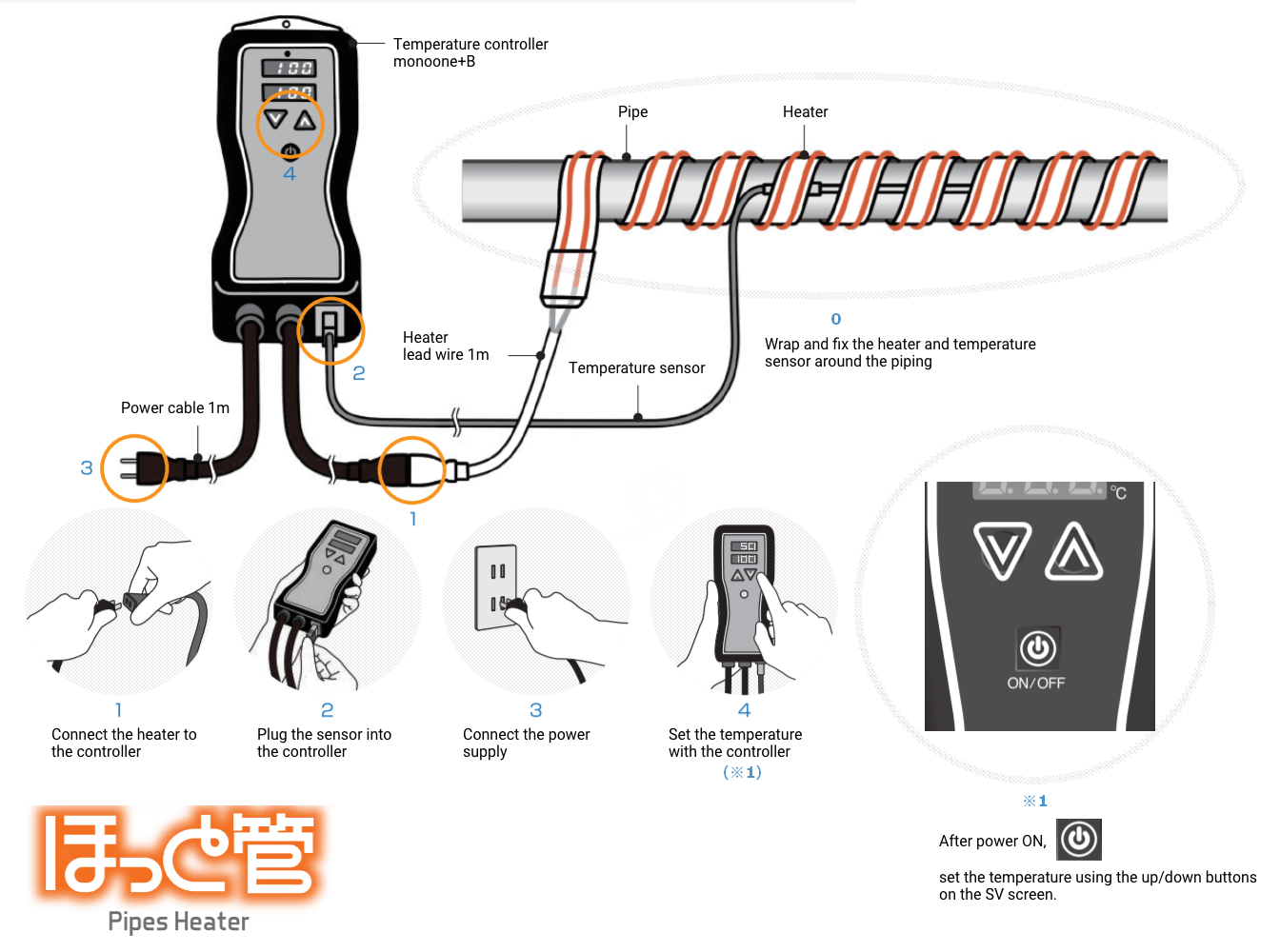

How to Use
How to Us |
---|
|
0.Wrap and fix the heater and temperature sensor around the piping 1.Connect the heater to the controller 2.Plug the sensor into the controller 3.Connect the power supply 4.Set the temperature with the controller |
