Thermocouple K
- In stock
- RoHS Compliance
- RoHS2 Compliance
- Normal temperature limit 200°C
- Normal temperature limit 400°C
Thermocouple K has a linear relationship between temperature and thermoelectric power, and is the most standard thermocouple for industrial use.
This temperature sensor is compatible with the ThreeHigh Digital Temperature Controller monoOne Series.If your temperature controller is compatible with the thermocouple K and Pt100Ω, it can be used.
Thermocouple (Type K) "Sheathed Type" (glass coated)
Maximum temperature of the sheath: 250°C (sleeve 80°C), Tolerance: Class 2 (±2.5°C or ±0.75%)
Model No. | TH-8159 | TH-8159-1 | TH-8159-2 | TH-8185 | TH-8182 | TH-8192 | TH-8163 | TH-8163-1 | TH-8196 |
---|---|---|---|---|---|---|---|---|---|
φ(mm) | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 1.6 | 1.6 | 1.0 |
L1(mm) | 100 | 100 | 100 | 300 | 500 | 50 | 100 | 100 | 100 |
L2(m) | 1.5 | 3.0 | 5.0 | 3.0 | 3.0 | 3.0 | 3.0 | 1.5 | 3.0 |
In stock | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
Thermocouple (Type K) "Sheathed Type" (silicone coated)
Normal temperature limit: 180°C (sleeve 80°C), Tolerance: Class 2 (±2.5°C or ±0.75%)
Model No. |
TH-8173 | TH-8174 |
---|---|---|
φ(mm) | 2.3 | 3.2 |
L1(mm) | 100 | 100 |
L2(m) | 2.0 | 2.0 |
In stock | ○ | ○ |
Thermocouple (Type K) "Sheathed Type" (fluororesin coated)
Normal temperature limit: 260°C, Tolerance: Class 1 (±1.5°C or ±0.4%), waterproof (IP67)
Model No. | TH-8100-2 |
---|---|
φ(mm) | 3.2 |
L1(mm) | 100 |
L2(m) | 2.0 |
In stock | ○ |
* The TH-8100-2 is waterproof.

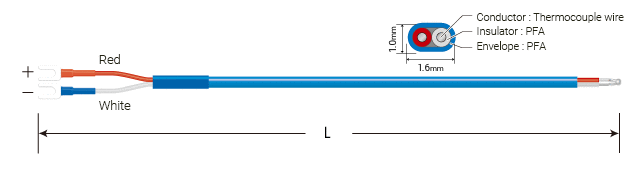

Duplex Type (welded tip) (fluororesin coated)
* A round terminal head can be attached to the tip as an option.
In that case, add "-M" to the end of the product code. (+800 yen without tax)
e.g. TH-8181-1-M
If a round terminal head is attached, the heat-resistant temperature is 200°C.
Normal temperature limit: 260°C, Tolerance: Class 2 (±2.5°C or ±0.75%), Wire diameter: 0.32mm
Model No. | TH-8181-1 | TH-8181-2 | TH-8181-3 | TH-8181-5 | TH-8181-10 | TH-8181-20 |
---|---|---|---|---|---|---|
L(m) | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 | 20.0 |
In stock | ○ | ○ | ○ | ○ | ○ | ○ |
Normal temperature limit: 260°C, Tolerance: Class 1 (±1.5°C or ±0.40%), Wire diameter: 0.32mm
Model No. | TH-8391-1 | TH-8391-2 | TH-8391-3 | TH-8391-5 | TH-8391-10 | TH-8391-20 |
---|---|---|---|---|---|---|
L(m) | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 | 20.0 |
In stock | ○ | ○ | ○ | ○ | ○ | ○ |
* Please consult us if other lengths are needed.

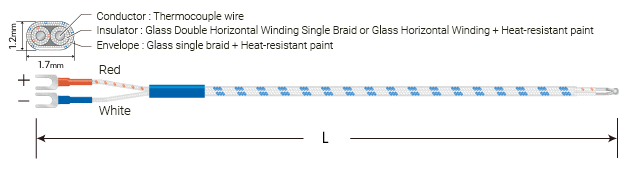

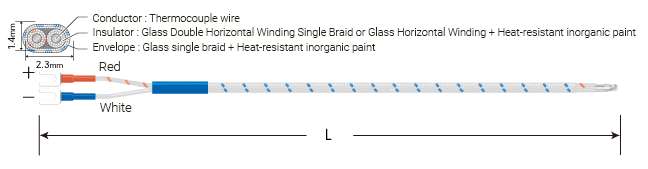

Duplex Type (welded tip) (glass coated)
* A round terminal head can be attached to the tip as an option.
In that case, add "-M" to the end of the product code. (+800 yen without tax)
e.g. TH-8162-1-M
If a round terminal head is attached, the heat-resistant temperature is 200°C.
Normal temperature limit: 250°C, Tolerance: Class 2 (±2.5°C or ±0.75%), Wire diameter: 0.32mm
Model No. | TH-8162-1 | TH-8162-2 | TH-8162-3 | TH-8162-5 | TH-8162-10 | TH-8162-20 |
---|---|---|---|---|---|---|
L(m) | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 | 20.0 |
In stock | ○ | ○ | ○ | ○ | ○ | ○ |
Normal temperature limit: 250°C, Tolerance: Class 1 (±1.5°C or ±0.4%), Wire diameter: 0.32mm
Model No. | TH-8296-1 | TH-8296-2 | TH-8296-3 | TH-8296-5 | TH-8296-10 | TH-8296-20 |
---|---|---|---|---|---|---|
L(m) | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 | 20.0 |
In stock | ○ | ○ | ○ | ○ | ○ | ○ |
Normal temperature limit: 350°C, Tolerance: Class 2 (±2.5°C or ±0.75%), Wire diameter: 0.32mm
Model No. | TH-8294-1 | TH-8294-2 | TH-8294-3 | TH-8294-5 | TH-8294-10 | TH-8294-20 |
---|---|---|---|---|---|---|
L(m) | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 | 20.0 |
In stock | ○ | ○ | ○ | ○ | ○ | ○ |
Normal temperature limit: 350°C, Tolerance: Class 1 (±1.5°C or ±0.40%), Wire diameter: 0.32mm
Model No. | TH-8398-1 | TH-8398-2 | TH-8398-3 | TH-8398-5 | TH-8398-10 | TH-8398-20 |
---|---|---|---|---|---|---|
L(m) | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 | 20.0 |
In stock | ○ | ○ | ○ | ○ | ○ | ○ |
* Please consult us if other lengths are needed.

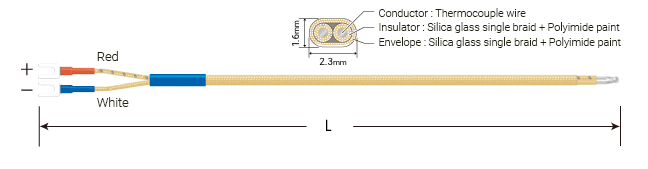

Duplex Type (welded tip) (silica glass coated)
* A round terminal head can be attached to the tip as an option.
In that case, add "-M" to the end of the product code. (+800 yen without tax)
e.g. TH-8292-1-M
If a round terminal head is attached, the heat-resistant temperature is 200°C.
Normal temperature limit: 400°C, Tolerance: Class 2 (±2.5°C or ±0.75%), Wire diameter: 0.32mm
Model No. | TH-8292-1 | TH-8292-2 | TH-8292-3 | TH-8292-5 | TH-8292-10 | TH-8292-20 |
---|---|---|---|---|---|---|
L(m) | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 | 20.0 |
In stock | ○ | ○ | ○ | ○ | ○ | ○ |
Normal temperature limit: 400°C, Tolerance: Class 1 (±1.5°C or ±0.40%), Wire diameter: 0.32mm
Model No. | TH-8396-1 | TH-8396-2 | TH-8396-3 | TH-8396-5 | TH-8396-10 | TH-8396-20 |
---|---|---|---|---|---|---|
L(m) | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 | 20.0 |
In stock | ○ | ○ | ○ | ○ | ○ | ○ |
* Please consult us if other lengths are needed.

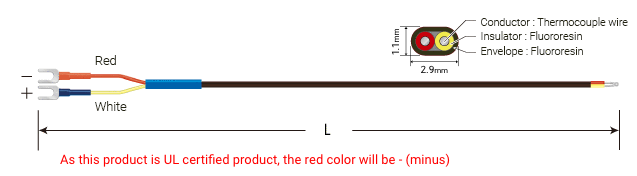

Duplex Type (welded tip) (fluororesin coated, UL certified)
* A round terminal head can be attached to the tip as an option.
In that case, add "-M" to the end of the product code. (+800 yen without tax)
e.g. TH-8290-1-M
If a round terminal head is attached, the heat-resistant temperature is 200°C.
Normal temperature limit: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%), Wire diameter: 0.65mm
Model No. | TH-8290-1 | TH-8290-2 | TH-8290-3 | TH-8290-5 | TH-8290-10 | TH-8290-20 |
---|---|---|---|---|---|---|
L(m) | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 | 20.0 |
In stock | ○ | ○ | ○ | ○ | ○ | ○ |
Normal temperature limit: 250°C, Tolerance: Class 2 (±2.5°C or ±0.75%), Wire diameter: 0.32mm
Model No. | TH-8299-1 | TH-8299-2 | TH-8299-3 | TH-8299-5 | TH-8299-10 | TH-8299-20 |
---|---|---|---|---|---|---|
L(m) | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 | 20.0 |
In stock | ○ | ○ | ○ | ○ | ○ | ○ |
* Please consult us if other lengths are needed.

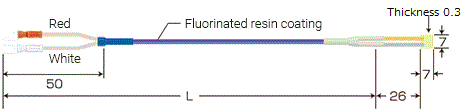

Temperature Sensor with Thermocouple (Type K) "Sheet Type"
Normal temperature limit: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%)
Model No. | TH-8297-1 | TH-8297-3 | TH-8297-10 |
---|---|---|---|
L(m) | 1.0 | 3.0 | 10.0 |
In stock | ○ | ○ | ○ |
* Please consult us if other lengths are needed.
Temperature Sensor with Thermocouple (K Type) "Stick Type"
Normal temperature limit: 260°C, Tolerance: Class 2 (±2.5°C or ±0.75%)
Model No. | TH-8282 |
---|---|
L(m) | 2.0 |
In stock | ○ |
Temperature Sensor with Thermocouple (K Type) "Molded Type" [waterproof]
Normal temperature limit: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%), Wire diameter: 0.32mm, Waterproof type
Model No. | TH-8484-3 |
---|---|
L(m) | 3.0 |
In stock | ○ |
* The TH-8484-3 is waterproof.
* Please consult us if other lengths are needed.
Temperature Sensor Thermocouple (K Type) "Ultra-Thin Type"
Normal temperature limit: 260°C, Tolerance: Class 2 (±2.5°C or ±0.75%)
Model No. | TH-8910-1 |
---|---|
L(m) | 1.0 |
In stock | ○ |
* Please consult us if other lengths are needed.

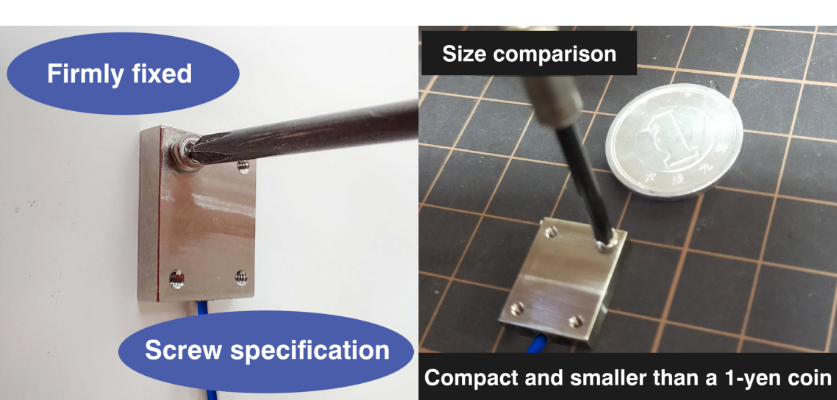

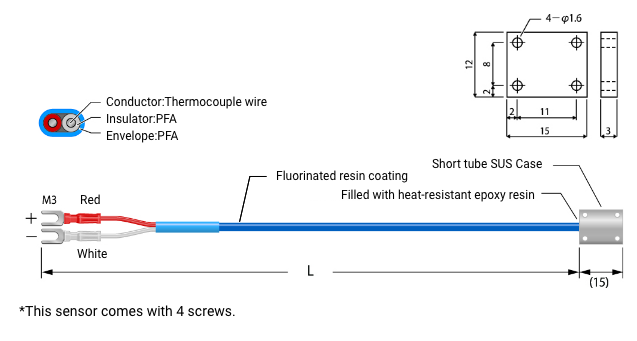

Temperature Sensor with Thermocouple (K Type) "Screwing Stick Type"
Normal temperature limit: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%)
Model No. | TH-8500 |
---|---|
L(m) | 2.0 |
In stock | ○ |
