Platinum resistance thermometer Pt100Ω
- In stock
- RoHS2 Compliance
- Normal temperature limit 200°C

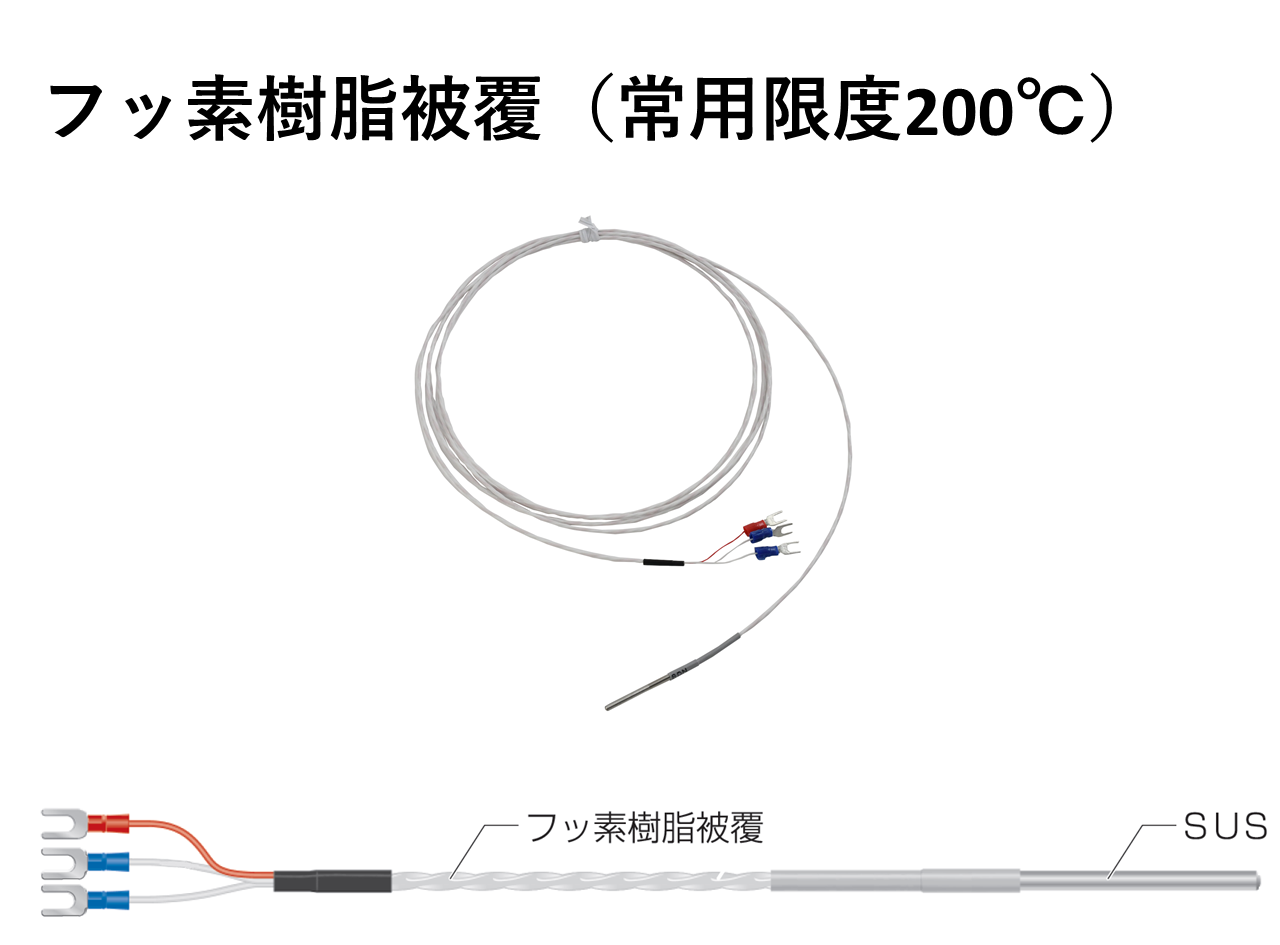

Fluorinated resin coating (Normal Limit: 200°C)
Platinum resistance thermometer Pt100Ω is a type of resistance thermometer that uses the property that the electrical resistance of the metal changes in response to changes in temperature.
This sensor uses platinum, which has good temperature characteristics and little change over time, as a temperature sensing element.
* It can't be used with monoOne+.
Platinum resistance thermometer "Stick Type"
Heat resistance temperature of cladding material: 200°C, Tolerance: Class A, 3 wired
| Model No. | TH-8320 |
|---|---|
| L(m) | 2.0 |
| In stock | ○ |
Platinum resistance thermometer Pt100Ω "sheathed type"
Heat resistance temperature of cladding material: 200°C, Tolerance: Class B, 3 wired
| Model No. | TH-8310 | TH-8315 |
|---|---|---|
| φ(mm) | 3.0 | 4.8 |
| L1(mm) | 50 | 50 |
| L2(m) | 3.0 | 3.0 |
| In stock | ○ | ○ |
* The TH-8315 is waterproof.
