monoOne+ B (monoOne plus B)/monoOne+ W (monoOne plus W)
- In stock
- 100V/200V compatible
- 100V/minute current
- RoHS2 Compliance
This product<monoOne+B> is sold out and discontinued. A successor model will be released around March 2025.
[Upgraded NEW version]
Handy type that is easy to use in every place. The simplest entry model of "monoOne" with temperature sensor. (thermocouple K type)
[Features]
- Easy, safe and compact design, easy to use for anyone.
- Handy type and easy operation. It fits in your hand.
- The sensor can be replaced. You can choose the sensor type to meet your needs.
- The industry's best class for handy types. Supports temperatures from -199 to 999°C.
- Equipped with overtheat prevention function and sensor abnormality detection function. When an error occurs, an alarm sounds.
- Easy-to-understand response to unpredictable malfunctions such as sensor disconnection error by error indication.
[Usage]
- Use the 100V power plug when connecting to the heater.
※ Only monoOne+ B can be used with 200V. (In this case, replace the plug with a 200V outlet plug.)
[Trademark]
- "monoOne" is a registered trademark of ThreeHigh Co., Ltd. in Japan.
For more details
Overview
This is a handy temperature controller that can be used from beginners to professionals with replaceable sensors. Available from one unit.
Standard equipment
Overheat prevention function. It is equipped with a sensor, so you can use it immediately after receiving it. Easy-to-understand response to unpredictable malfunctions such as sensor disconnection error by error indication.
Optional equipment
Available to be installed on DIN rails. Mounting to the control panel is also available.
| Product picture |  |  |
|---|---|---|

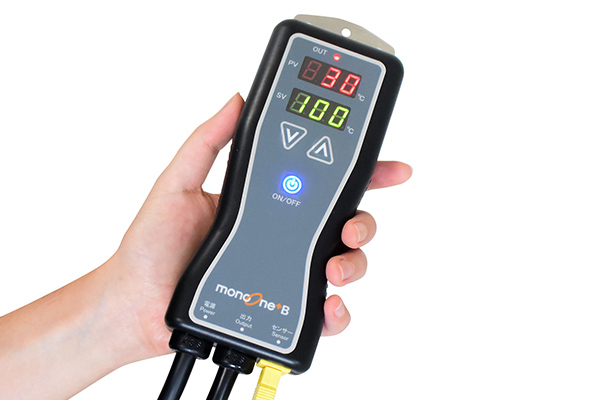

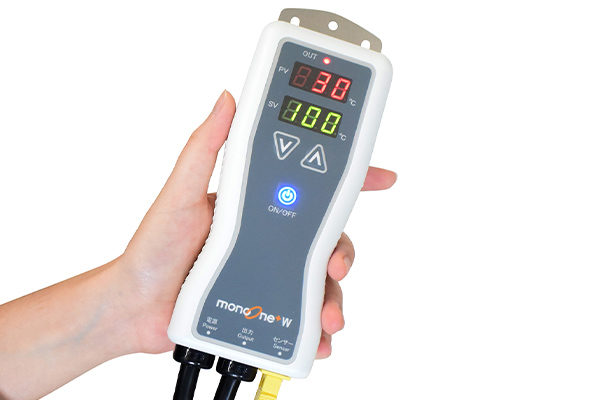

| Product name | monoOne+B *Sales have ended due to the end of production and the sold out stock. The successor model is scheduled to be released around next March 2025. | monoOne+W |
| Model | mpb20 | mpw20 |
| Color | Black | White |
| Power supply voltage | AC 85V ~ 250V (single phase) 50/60Hz | AC 85V ~ 125V (single phase) 50/60Hz |
| Output rating | 0.1A～12A (resistive loading) | 1mA to 0.5A (resistive loading) |
| Input | Thermocouple (K) | |
| Output format | Relay | |
| Control method | ON/OFF control | |
| Display range | -199～999℃ | |
| Indication accuracy | ±2℃(-199℃～700℃)，±4℃(+700℃～+999℃) | |
| Sampling cycle | 0.1 second | |
| Memorizing the setup values | EEPROM | |
| Short circuit protection | Built-in fuse (cannot by exchanged by the user) | |
| Other functions | Error display/Sensor error detection function/Overheat prevention setting/ Relay-welding detection function/High-frequency relay switching detection function Relay switch count monitoring function | |
| Electric energy consumption | 4VA or less | |
| Operable temperature range | Temperature:-10 to 40°C, Humidity: 10 to 85% RH (non-condensing) | |
| Withstand voltage | AC1500V per minute (both power supply and output) | |
| Noise Resistance | Pulse width 50nS, 1500V at 1000nS | |
| Dimensions/weight | 165 (vertical) × 70 (horizontal) × 35 (depth) mm* Approx. 600g excluding protrusions and mounting brackets | |
| Installation | Wall-mounting/DIN Rail (Optional) | |

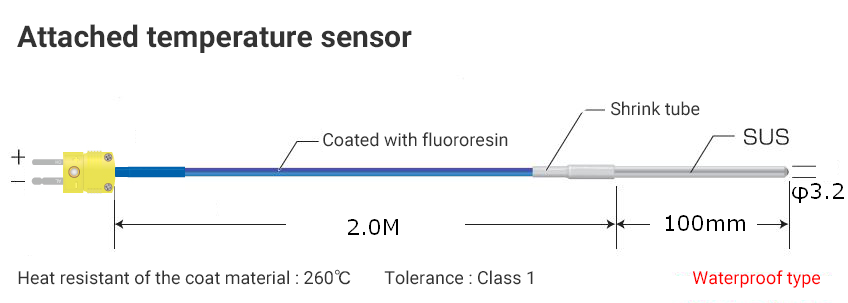

| Included sensor | Thermocouple(K) φ3.2×100 L Includes male connector with 2m lead wire ※ Please contact us when used at 260°C or higher. | |
| Power supply cable length | Power supply side: 1m (with 100V male outlet plug) Heater side: 1 m (with 100V female outlet plug) | |
"monoOne+" Upgraded features even for the handy type
- Made in JAPAN
- As this is one of ThreeHigh's policies, it is made in Japan and reliable product.
- Safety and security
- Multi-functional and high-functional model specialized in safety by handy type. We have released detailed information on the performance of our products for customers using them with confidence.
- Ready to use
- It can be used immediately by unpacking and connecting it to the heater. Of course, sensors are also included.
- Display range
- The best handy type in the industry. It supports from -199 to 999°C.
- The sensor are replaceable.
- You can choose the sensor type to meet your needs.

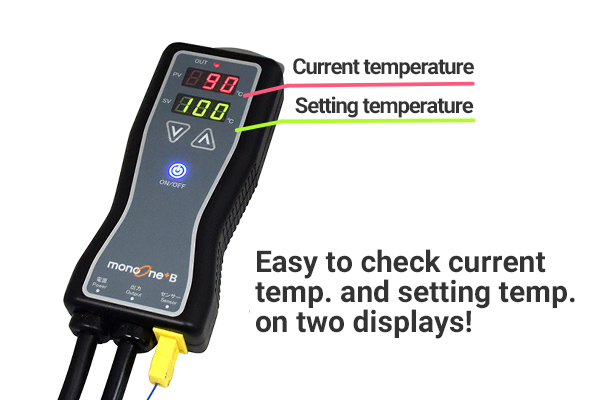

- Simultaneous setting/measured temperature display function
- The set temperature and measured temperature can be seen at the same time! You can control the temperature with confidence.
- Alarm notification function
- Signals through sound in case an abnormality occurs. You can work with confidence even in situations that cannot be visually checked.
- Short circuit protection function
- The main body will not be damaged in any event. This avoids the risk of circuit damage due to excess current.
- Overheat prevention function
- There is a risk of overheating.
It is a reassuring counter measure, where the temperature is set in advance, so that the output will be turned off automatically.
- DIN rail compatibility
- In consideration of the installation method - it can be easily installed inside a control panel.
- RoHS2 compliant
- We are also environmentally conscious. Compliant with the RoHS2 Directive.
- Troubleshooting
- In case of failure, we will handle it properly. With our full traceability and support we prevent any possible negligence. We put quality and reliability first.
- 【NEW!】Celsius Fahrenheit switching display
- Temperature display can be switched between [°C] and [°F].It is easy to convert and can be used in a wide range of situations.※1
※Lot number:
・MonooOne+B:2112001 or later
・MonooOne + W: Planned to be complied with in the future
※1：Set temperature (SV) takes over the temperature before the change, so please also change it at the time of switching.
