Digital Temperature Controller monoOne-120 (monoOne 120)

Compact and tough body. The temperature of the heater and the object to be heated can be monitored at the simultaneously, and the overheat prevention function is installed.

Easy, safe and compact design, easy to use for anyone.
It supports most thermocouples including platinum resistance thermometers Pt100Ω.
First in the industry! Sensor port for monitor is equipped as standard.
PID control and monitor functions are equipped as standard.
The heater can be safely used with two overheat prevention function.
The temperature of the object to be heated is also measured while controlling the temperature of the heater. It can be used safely even if the heated parts are separated.
A safe field environment can be realized by using the error port even for unpredictable malfunctions such as sensor disconnection.

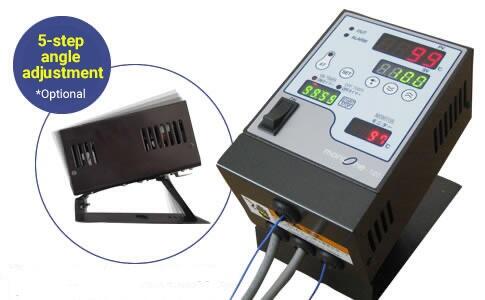

It is also possible attach it to 5-step stands and DIN rail mounting. A convenient ON/OFF timer can also be selected.

※ The temperature sensor is not included. Select a temperature sensor that meets your application.

※ "monoOne" and its logo are registered trademarks of ThreeHigh Co., Ltd. in Japan.

Purchase Inquiry / Quotation

For more details

Product features

Overview

Simple! Safe! Compact! You just need one finger to set from the ON/OFF of the power supply to the temperature setting! It is a highly functional compact temperature controller that can be used from beginners to professionals. Available purchasing from one unit.

Standard equipment

"Monitoring Function"

The temperature of the object to be heated is also measured while controlling the temperature of the heater (monitor function.) More accurate temperature control is available by monitoring two temperatures simultaneously. It can be used safely even if the heated parts are separated.

"Error function"

When the error port is used for unpredictable malfunctions such as heater disconnection (*) and sensor disconnection, a safe field environment can be realized by using buzzer, rotating light, etc.

※ Parameter settings must be set in advance.

Optional equipment

"Timer function"

Set the time to turn ON and OFF in 1 minute increments for a maximum of 100 hours. This reduces the labor time.

"Designed considering DIN rail"

Can be installed with DIN rails. Mounting to the control panel is not a concern.

Product specifications

Model

monoOne-120/120T

Input

Thermocouple (K, J, T, E, R, S, B) <100 Ω or less external resistor>
Platinum resistance thermometer Pt100Ω

Power supply voltage

AC 90 ~240V (single phase) 50/60Hz

Output format

SSR (non-contact) voltage output <The output voltage depends on the power supply voltage>

Output rating

15A or less
※ There is some leakage current due to SSR output. Please contact us if the current value is 0.2A or less.

Auxiliary output

AC250V、3A

Control method

1. PID time division proportional <Heating> with auto-tuning
2. ON/OFF control <Heating>

Control constant

Proportion range: 0.1 to 999.9 (°C)/Proportion cycle: 1 to 10 (sec.)
Integral time: 0 to 999 (sec.)/Sensitivity: 0 to 99.9 (°C)
Differential time: 0 to 999 (sec.)/PV compensation:-50.0 to 50.0 (°C)

Display unit

Classification	Resolution 0.1	Resolution 1	Unit
K	-199.9～999.9	-199～1372	℃/℉
Pt100	-199.9～650.0	-199～650	℃/℉
J	-500～999.9	-50～1100	℃/℉
T	-199.9～400.0	-199～400	℃/℉
E	-199.9～750.0	-199～750	℃/℉
R	－	0～1760	℃/℉
S	－	0～1760	℃/℉
B	－	0～1800	℃/℉

Measured temperature: 7-segment red LED with a character height of 14.3mm
Set temperature: 7-segment green LED with a character height of 10.2mm
Monitor display: 7-segment red LED with a character height of 8.0mm
Timer indication: 7-segment green LED with a character height of 8.0mm
OUT lamp: Lights when heater output is on <range LED lamp>
ALARM lamp: <Red LED lamp> Lights when error (alarm) occurs.
AT lamp : Lights during auto-tuning <Green LED lamp>
ON timer: Lights when ON timer is selected <orange LED lamp>
OFF timer: Lights when OFF timer is selected <orange LED lamps>

Indication accuracy

Thermocouple	K,J,T,E	(The larger of ±0.3% or ±2°C of the displayed value) ±1digit or less
	R,S	(The larger of ±0.3% or ±3°C of the displayed value) ±1digit or less
	B	0 ~ 400°C ±5% 1digit or less of the indication range
Platinum resistance thermometer		(The larger of ±0.3% or ±0.8°C of the displayed value) ±1digit or less

※ Sensor errors are not included.

Sampling cycle

0.5 sec.

Memorizing the setup values

EEPROM

Short circuit protection

20A Built-in fuse (Cannot be exchanged by the user)

Other functions

Error display/Burnout/Overheat prevention setting/Lock function/
Heater disconnection alarm function/Timer function

Power consumption

10VA or less

Operable temperature range

Temperature :0～40℃
Humidity: 35 to 85% r h (non-condensing)

Withstand voltage

AC1800V per seconds (both power supply and output)

Noise Resistance

Pulse width 50 nS, 1200V or more at 1μS

Dimensions/weight

165 (vertical) × 110 (horizontal) × 85 (depth) mm *Approx. 1.3kg excluding protrusions and mounting brackets

Installation

Tabletop/wall-mounting/DIN rail (optional)
