Metal Detector Reaction Silicone Sponge (KINZO)

[The first in the industry!]

KINZO is a silicone sponge that responds to metal detectors.

It is recommended for people in the food industry who need packing but want to prevent contamination from entering.

[Explanation]

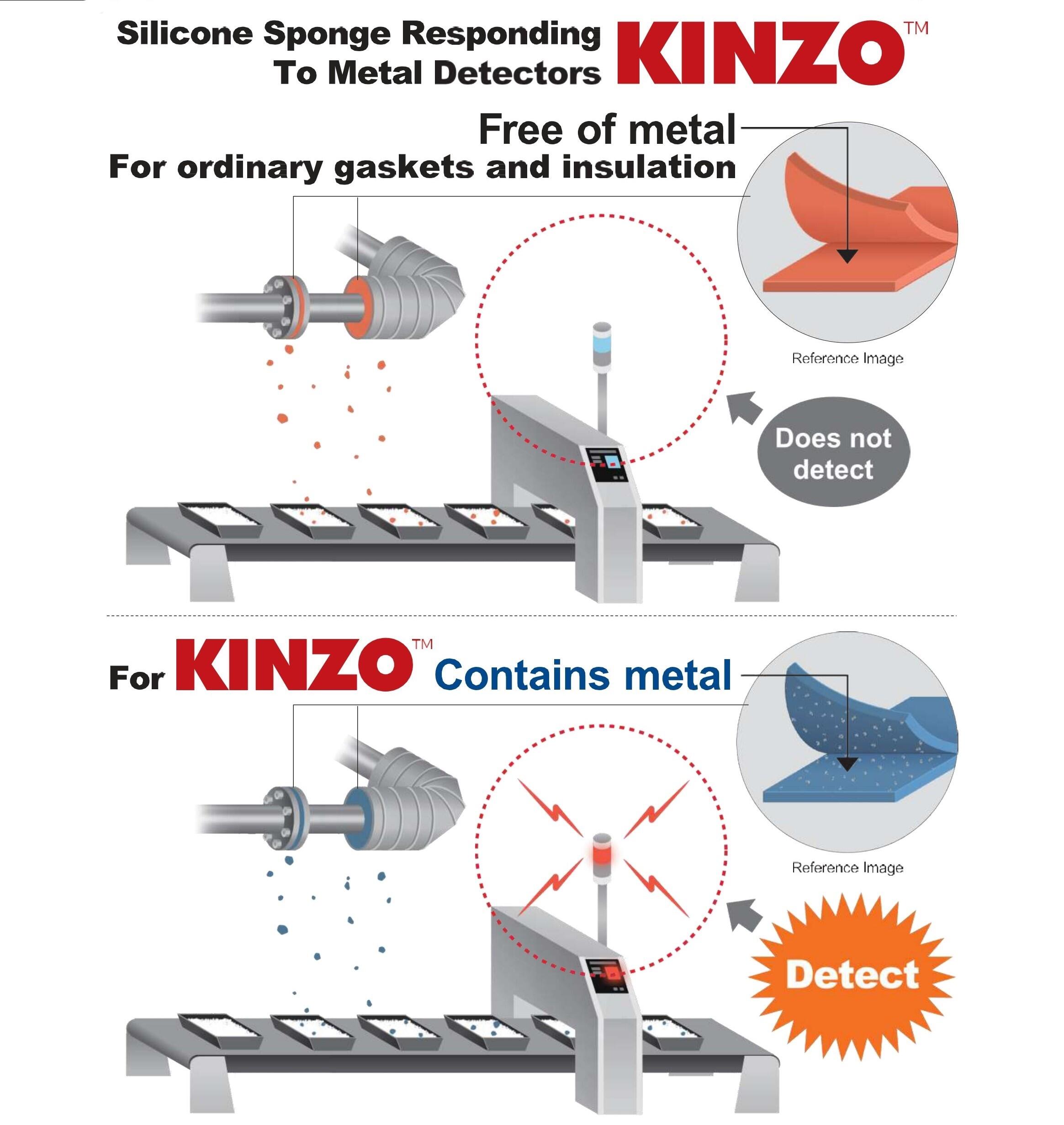

It can be used as a part of food-related production equipment and can be detected by a metal detector in the event of a defect.
(* Different sizes of debris that can be detected depending on the sensitivity setting of the detector and the operating environment, etc.)
Compliance with the Food Sanitation Law (MHW Notification No. 370)

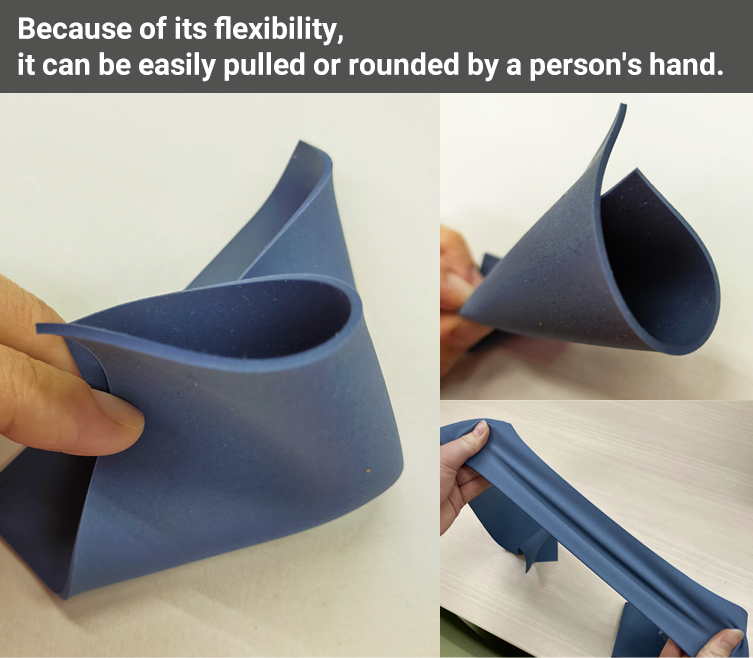

It is flexible and easy to bend by hand.
It can be used in an environment from -50℃ to about 220℃.
Hardness: 20° Color: Blue double-sided tape processing: Yes

[Applications]

Packing, heat insulation, thermal insulations, anti-freezing, and heat-resistant cushions.
※For including delivery dates, please contact us.

Inquiry / Quotation

Metal Detector Reaction Silicone Sponge (KINZO)

For more details

Product features

Overview

[The first in the industry!]
KINZO is a silicone sponge that responds to a metal detector.

Sheet-type insulation that is flexible and easy to cut with cutters and scissors.

It is recommended for people involved in food products, such as those who need packing but want to prevent contamination from entering.

Characteristics

This is a sheet-type insulation material. Flexible and easy to cut with scissors or cutters.
It can be used as a part of food-related production equipment and can be detected by a metal detector in the event of a defect.
(* Different sizes of debris that can be detected depending on the sensitivity setting of the detector and the operating environment, etc.)
Compliance with the Food Sanitation Law (MHW Notification No. 370)
Flexible and easy to bend by hand.
It can be used in an environment from about -50℃ to about 220℃.

Handling

[Signal word]	Dangerous
[Hazard and toxicity information]	It may cause allergy, asthma or dyspnea if inhaled It may cause allergic skin reactions It may be suspected risk of hereditary disease It may cause respiratory irritation (respiratory tract irritation) It may cause damage to organs (systemic toxicity) Eye irritation
[Substances to be notified]	Zinc oxide, mineral oil, titanium oxide, chromium and its compounds, manganese and its inorganic compounds
[Safety Measures]	Do not start using until all safety precautions are read and understood. When moving, static electricity may be generated. If combustible organic solvents are used, appropriate measures such as grounding must be taken. Dust or high temperature may be generated during grinding, cutting, etc., which may cause irritation to the eyes, nose, respiratory organs, skin, etc. Avoid abnormal temperature rises during processing, and use local exhaust ventilation as necessary to prevent exhaust and ventilation.
[First Aid]	In the case of a fire (burned), use water injection, dry chemicals, carbon dioxide, or dry sand to assimilate. In addition, wear appropriate protective clothing as toxic gas may be generated. There is no information that may have a special effect on the human body. If necessary, wash the parts with soap.
[Storage]	Avoid direct sunlight, moisture, high temperature, and outdoor storage, and store in a cool, dark place. Do not bend or deform the product. If the amount stored exceeds 3,000 kg, the product falls under the category of specified combustible materials. When handling more than the specified quantity is required, please manage it in accordance with the Fire Service Law.
[Discard]	Dispose of industrial waste in a safe facility such as a waste incinerator approved by law.
[Precautions]	This product is developed and manufactured for general industrial use. If the product is used for medical or other special purposes, confirm the safety before use.

Product specifications

Specification	Hardness: 20° Color: Blue double-sided tape processing: Yes In addition to circular and strip shapes, special shapes can be processed. The optional double-sided tape is also easy to mount. Available from one sheet order. ※The basic product size is 20 mm x 1 mm x 1 mm (slice from 1 mm thick to the desired size). ※1mm to 9 mm thickness are double-sided slices and 10 mm thickness is double-sided slices or with one-sided skin.
Application	Various gaskets and packings Electronic, electrical, and automotive parts Piping line Packing, heat insulation, thermal insulations, anti-freezing, and heat-resistant cushions.

Specification

Hardness: 20° Color: Blue double-sided tape processing: Yes

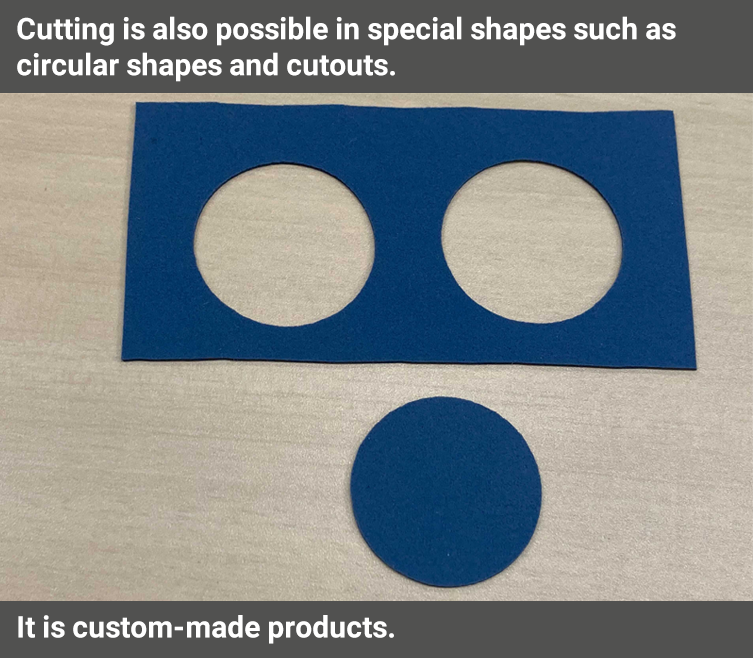

In addition to circular and strip shapes, special shapes can be processed.
The optional double-sided tape is also easy to mount.

Available from one sheet order.
※The basic product size is 20 mm x 1 mm x 1 mm (slice from 1 mm thick to the desired size).

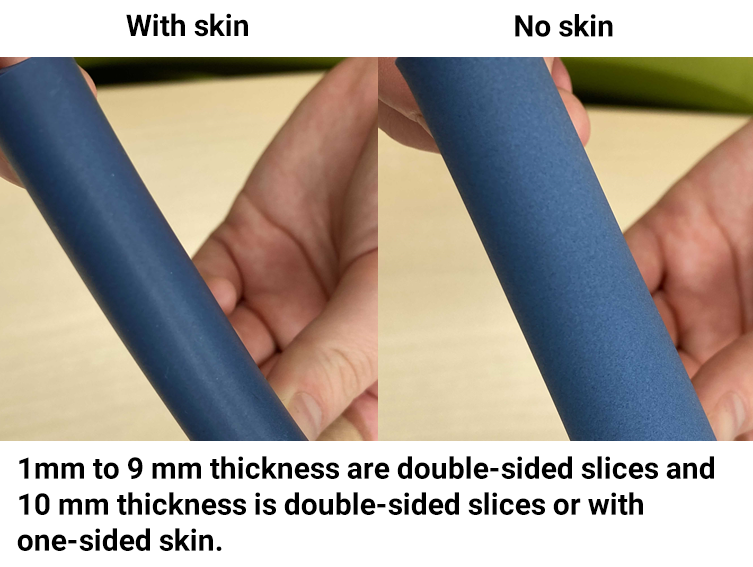

※1mm to 9 mm thickness are double-sided slices and 10 mm thickness is double-sided slices or with one-sided skin.

Application

Various gaskets and packings
Electronic, electrical, and automotive parts
Piping line

Packing, heat insulation, thermal insulations, anti-freezing, and heat-resistant cushions.

※A hole about 1 mm may appear on the surface depending on the manufacturing process.
Due to the characteristics of the product, there are cases where the product may be creased, but there are no problems with the performance of the product.
※The description may be changed without prior notice.
